Creo Reverse Engineering:
Convert Existing Physical Products Into 3D CAD Models!
With PTC Creo Reverse Engineering Extension (REX), you can easily create – or recreate the electronic 3D CAD model of your physical product, without spending an enormous amount of time, effort or money. Creo Reverse Engineering allows engineers to work with ‘point cloud’ data obtained by scanning physical prototypes.
With the cutting edge tools in Creo Reverse Engineering, you can refine the point cloud and polygonal data, reducing noise and/or the total number of points. In this way you can speed up processing time, without sacrificing the level of detail, while preserving design intent.
Creo Reverse Engineering gives you the flexibility to design new, more innovative products that will win in today’s competitive environment. Put Creo Reverse Engineering to work for you.
-
REFINE DATA
REFINE DATA

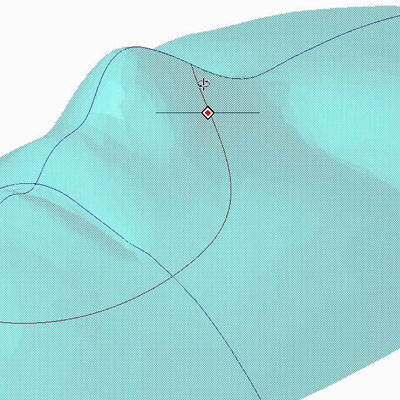

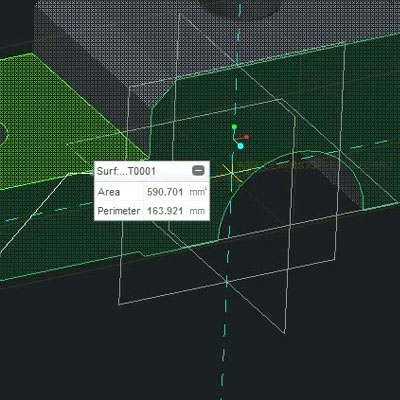

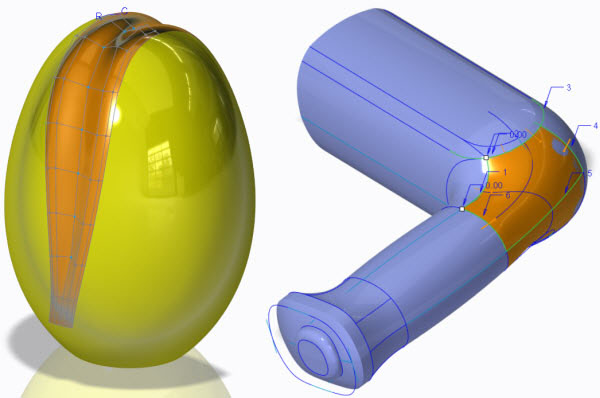

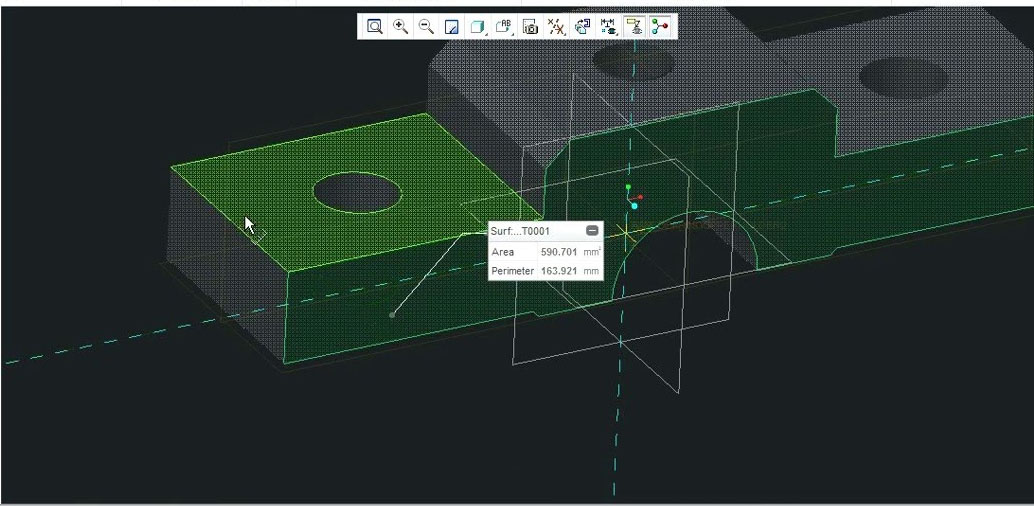

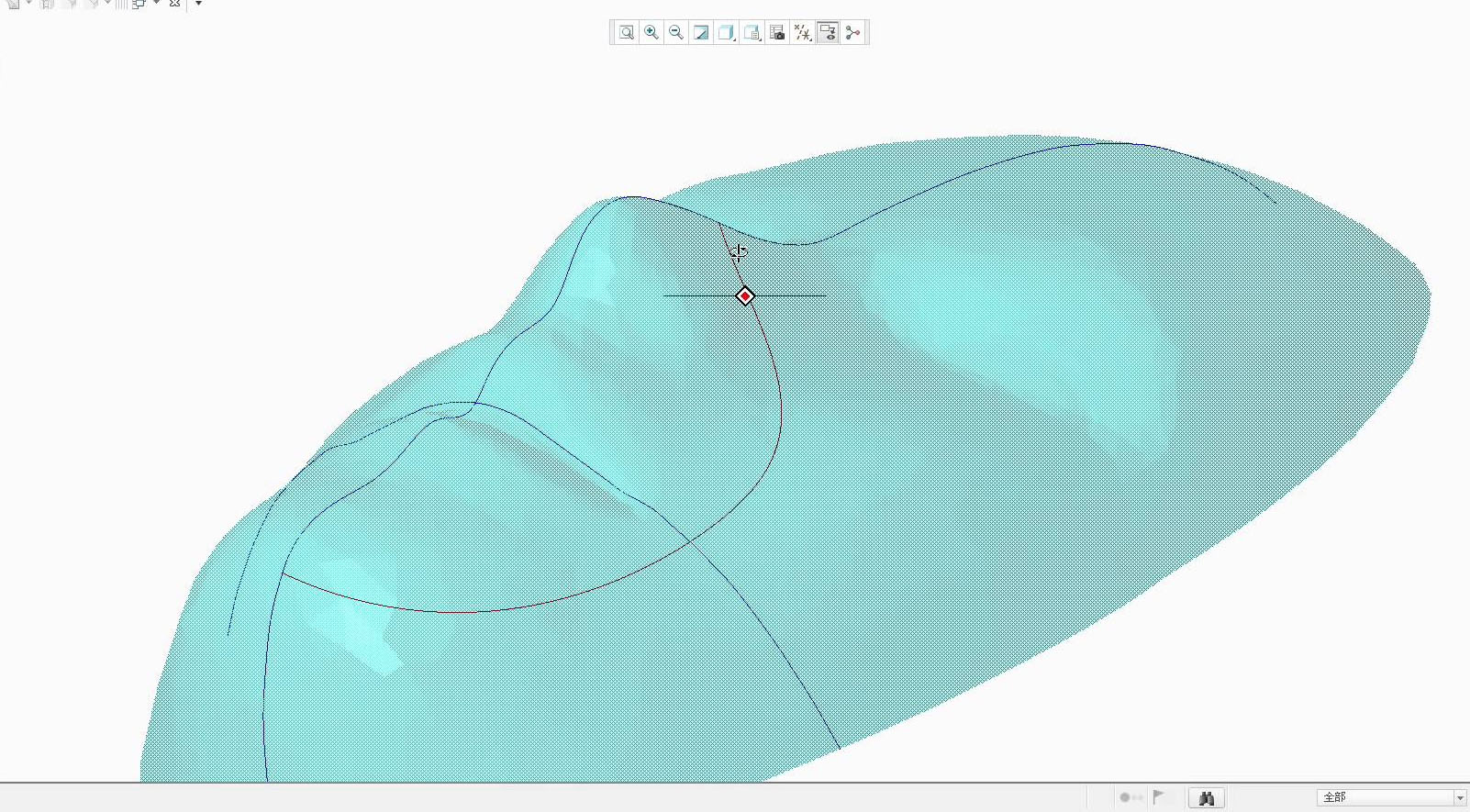

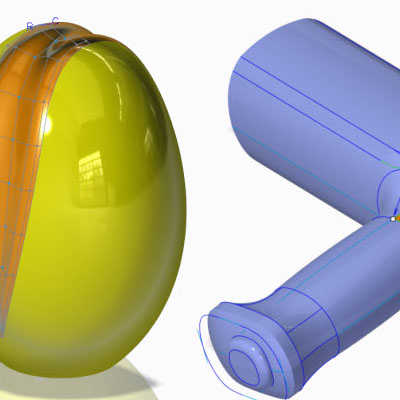

Refine the point cloud and polygonal data, reducing noise and/or the total number of points. In this way you can speed up processing time, without sacrificing the level of detail, while preserving design intent. From there, you can quickly create a facet model. Surfaces can be projected to fit facet data, or boundary surfaces created from curves sketched on the facet model.
-
PRESERVE DESIGN
PRESERVE DESIGN

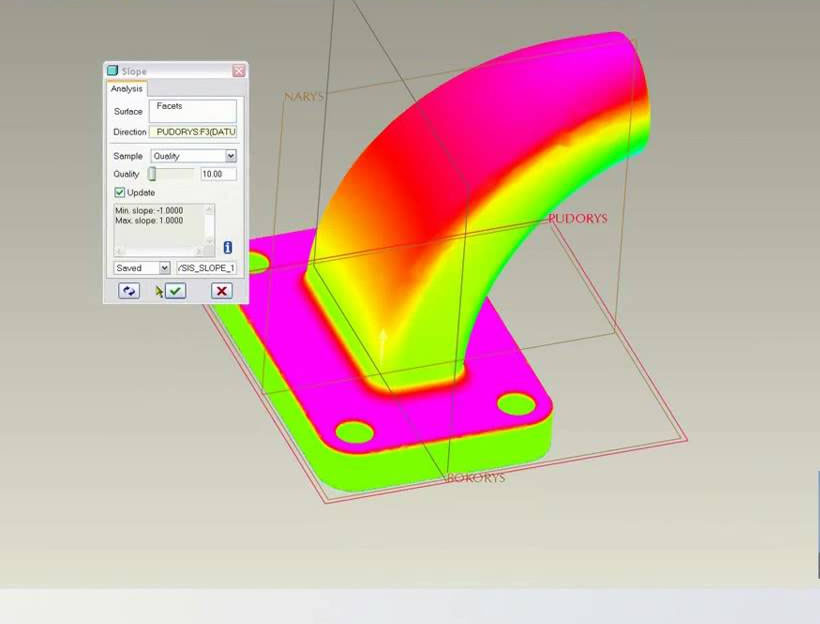

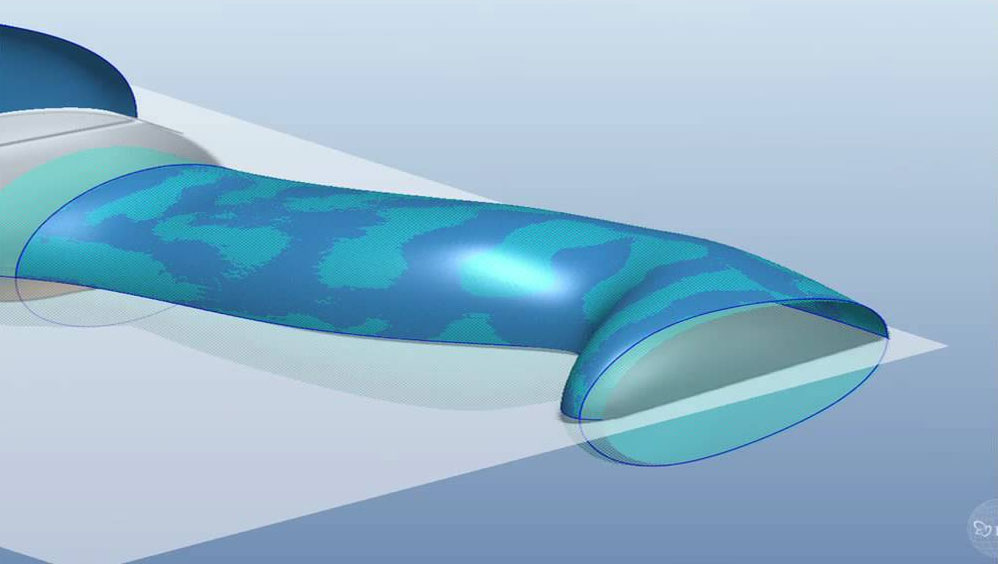

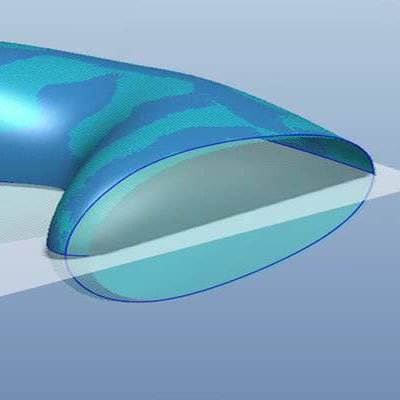

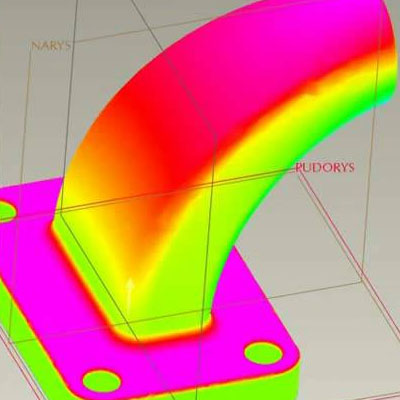

Use the full set of Creo analysis tools for surface analysis, and to check for any deviation between the surface and facet data. Creo Reverse Engineering captures physical characteristics such as surface tangency, ensuring that the design intent is preserved 100%.
-
WELL DOCUMENTED
Features
Creo Reverse Engineering, Capture Existing Designs
Images & Videos
Design Using Creo Reverse Engineering
Select Category
-
Topology Optimization
Define the objectives and constraints, and Creo will create the optimized, parametric geometry for you.
-

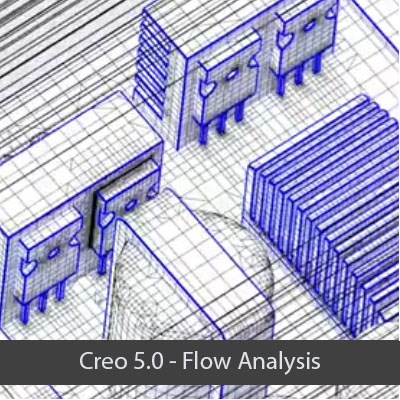

Computational Fluid Dynamics
Find and fix issues with liquid or gas flow around your products early in the design process — before you invest in prototypes.
-
Additive Manufacturing
Creo 7.0 can print with polymers or metal, with support for Stratasys and 3D Systems plastic printers.
-

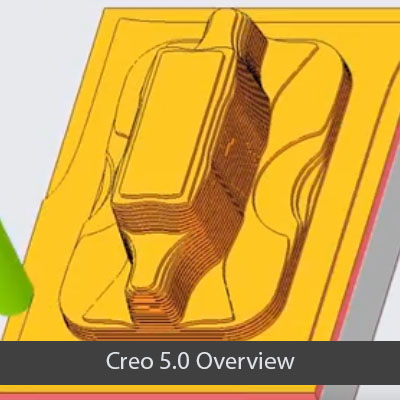

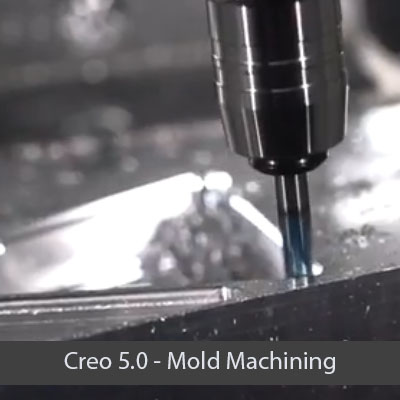

Creo Mold Machining Extension
